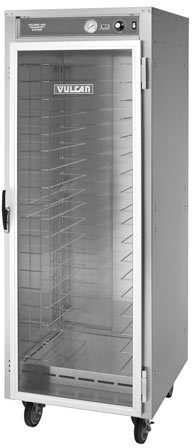

Eighteen level holding and transport cabinet accepts eighteen 18" x 26" pans or thirty-six 12" x 20" pans, pans may be up to 2 3/4" tall
Heavy duty 20 gauge polished stainless steel cabinet
Set of 5" casters, two swivel with brakes and two rigid
Full size glass door with field reversible heavy duty hinges, door latch mechanism, and gaskets
Fixed interior pan supports are designed to accommodate pan covers for transporting, and are removable for easy cleaning
Top mounted, recessed control panel includes power “on” and heater “on” indicator lights, dial thermostat adjustable from ambient to 190°F, and temperature read-out dial
Top mounted control panel is easy to use and out of the way of brooms, mops, and feet when transporting. Control panel on top eliminates removing control panel for cleaning.
Fan and air tunnel provide even heat distribution
Two 1,000 watt metal sheathed heating elements, 16.7 amps total draw
Requires 120 volt, single phase power supply
Furnished with top mounted 8 foot power cord with strain relief and NEMA 5-20 plug
Lifetime warranty on the heating elements
One year limited parts and labor warranty
Product Specs
Amps: 16.7
Dimensions: 25 1/4 x 30 3/4 x 71 (W" x D" x H")
Pan Capacity: (18) 12 x 20 or (36) 12 x 20 x 2 3/4
Volts: 120
Warranty: 1 year limited parts and labor warranty. Lifetime warranty on the heating elements
