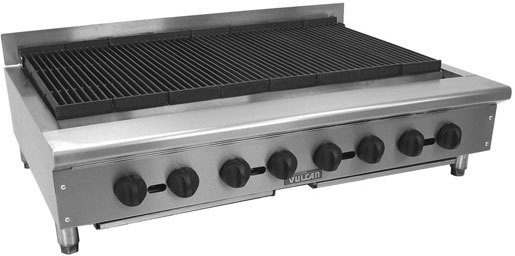

VACB47 Model Shown

OEM Numbers

VACB60, VACB60N-21, VACB60P-21

Spec Sheet (PDF)

Vacb Charbroilers Offer The Most Uniform Deck Profile Of Any Heavy Duty Counter Charbroiler In Its Class. Heavy Duty 24" Deep Cast Iron Grates, Cast Iron Radiants And Cast Iron Burner Deliver Years Of Reliable Performance In The Most Punishing Environments. The Achiever's Unique "supercharger" Construction And Heat Deflector Panels Keep The Heat Focused Above Each Burner And Create A "cool Zone" Below The Unit And Protect Your Refrigerated Base.

• Stainless Steel Sides, Control Panel, Top Trim, Backsplash And Grease Trough
• Full Width Front Grease Drawer
• Heavy Duty Cast Iron Char-radiants
• 5 1⁄4" Wide Cast Iron Diamond Grates
• One 18,000 Btu/hr Burner For Each Broiler Grate
• Standing Pilot Ignition System
• One Infinite Heat Control Valve For Each Burner
• Underburner Deflector System Reflects Heat Upwards Creating A “cool Zone” In The Grease Drawer And Drip Areas.
• 4" Adjustable Legs
• 3⁄4" Rear Gas Connection And Gas Pressure Regulator
• Supercharger Burner Dividers Minimize Heat Transfer To Enhance Multi-zone Cooking Capability
