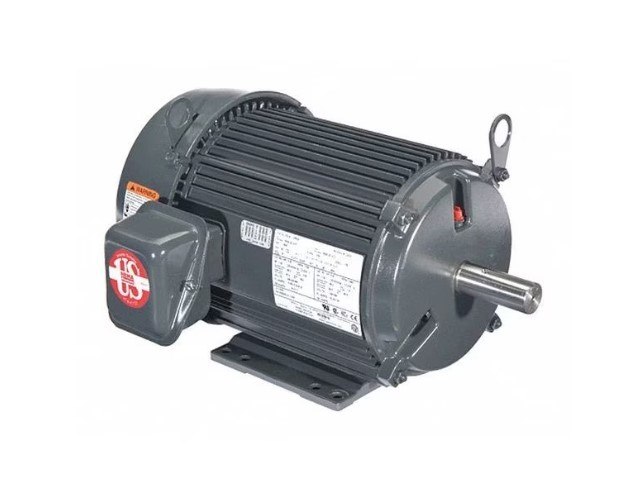

General Purpose Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 18.2/9.1 A, 213T Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Down
Dimensions
Manufacturers Warranty Length: 2 yr
Length Less Shaft: 15 1/4 in
Shaft Length: 3 3/8 in
Shaft Dia.: 1 3/8 in
Overall Length: 18 5/8 in
