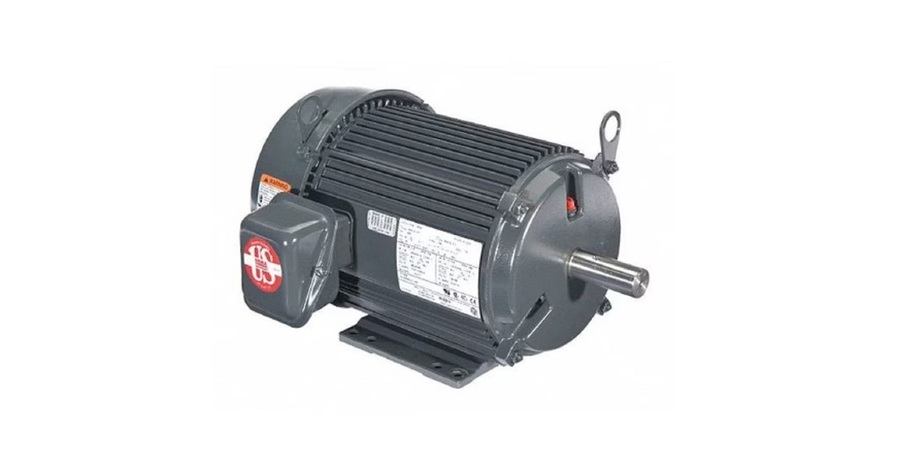

General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.6-12.3/6.2 A, 184T Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Dimensions
Overall Length: 17 in
Manufacturers Warranty Length: 2 yr
Shaft Length: 2 3/4 in
Length Less Shaft: 14 1/8 in
Shaft Dia.: 1 1/8 in
