u.s. motors u2p2dc

us motors

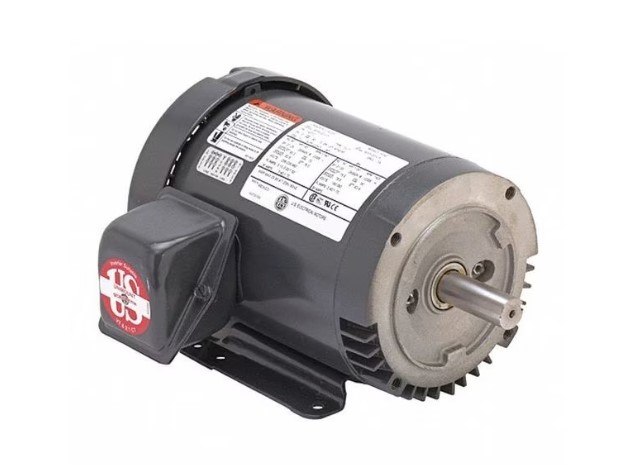

U.S. Motors U2P2DC

3-Phase General Purpose Motor, 2 HP, 145TC Frame, 208-230/460V AC Voltage, 1,800 Nameplate RPM

Price: $529.00
Fast processing and shipping
serving the USA since 2005

U2P2DC Product Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 5.9-5.7/2.8 A, 145TC Frame, Hz 60/50 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal or Vertical Shaft Down

Dimensions

Overall Length: 13 1/8 in

Length Less Shaft: 10 7/8 in

Manufacturers Warranty Length: 2 yr

Shaft Length: 2 1/4 in

Shaft Dia.: 7/8 in

Product Specs

  • Amps: 5.9-5.7/2.8 A
  • HP: 2
  • Phase: Three
  • RPM's: 1701-1800
  • Volts: 208-230/460V AC
  • Weight: Not Available lbs.
