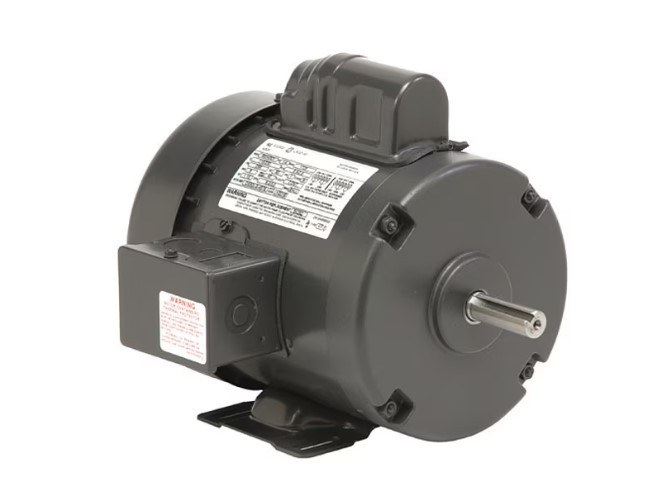

Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V, Full Load Amps 14.0/6.9-7.0 A, 56H Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base
Dimensions
Shaft Length: 1 15/16 in
Length Less Shaft :10 7/16 in
Overall Length: 12 3/8 in
Shaft Dia.: 5/8 in
