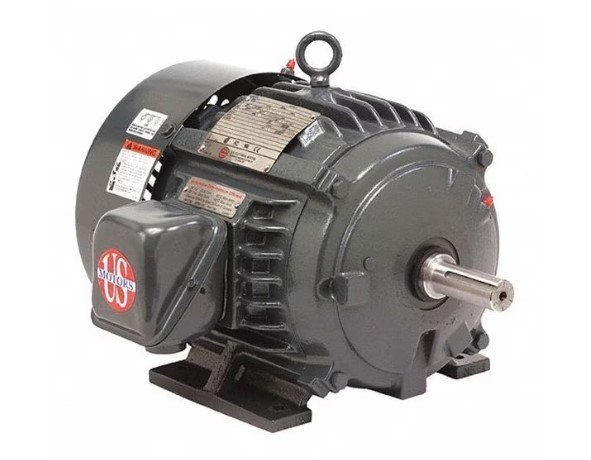

Motor, 3-Phase, Totally Enclosed Motor Enclosure Design, 75 hp HP, Nameplate RPM 1,785, Frame 365T, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 68.0 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 104 Degrees F, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, CSA Certified, ENERGY cURus
Dimensions
Shaft Length: 5 7/8 in
Length Less Shaft: 27 1/16 in
Shaft Dia.: 2 3/8 in
Overall Length: 32 15/16 in
