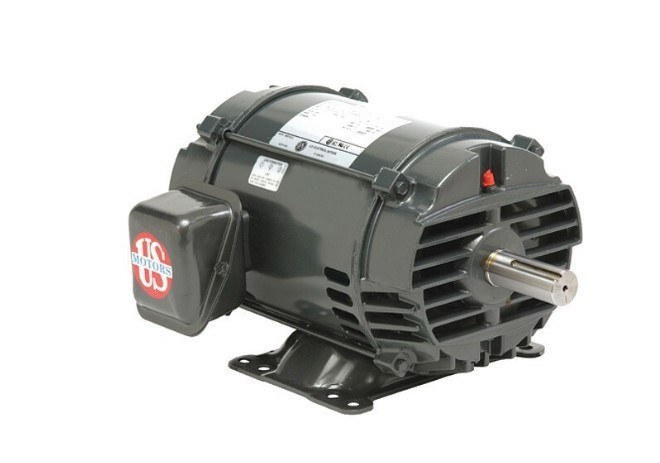

Dry Hydraulic Motor, Bearing Protection Shaft Shields, Body Dia. 18.2 in, Conduit Box Position F1, Duty Cycle Intermittent, Frame 364T, Hz 60, Full Load Amps 185.0/92.0, Height 20 1/4 in, HP 75 hp, Ins. Class F, Lead Length 72 in, Length Less Shaft 23 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 214.0/107.0, Motor Application Elevators where Dry Hydraulic Motors are Require, Usually Five Stories or Less, Motor Bearings Ball, Motor Design 3-Phase, Motor Enclosure Design Open Dripproof
Dimensions
Height: 20 1/4 in
Lead Length: 72 in
Length Less Shaft: 23 in
Shaft Length: 5 7/8 in
Overall Length: 28 5/8 in
Body Dia.: 18.2 in
Shaft Dia.: 2 3/8 in
