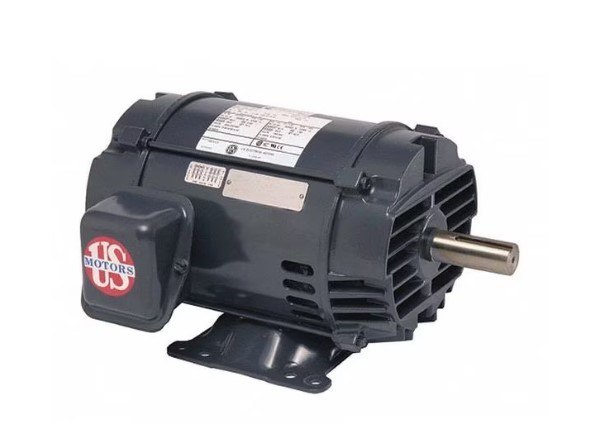

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 75 hp HP, Nameplate RPM 1,190, Frame 405T, Voltage 230V, 460V, 60 Hz Hz, Three Phase, Full Load Amps 172.0/86.0 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, Nominal Efficiency 94.5 Percent, CSA Certified, ENERGY cURus
Dimensions
Shaft Dia.: 2 7/8 in
Overall Length: 34 in
Length Less Shaft: 26 3/4 in
Shaft Length: 7 1/4 in
