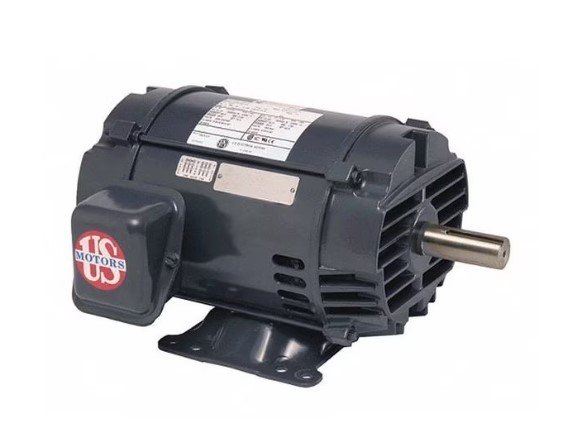

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 75 hp HP, Nameplate RPM 1,190/985, Frame 405T, Voltage 190V, 230V, 380V, 460V, 60/50 Hz Hz, Three Phase, Full Load Amps 172.0/86.0 A, Rigid Base Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, CSA Certified, ENERGY cURus
Dimensions
Shaft Length: 7 1/4 in
Overall Length: 32 1/2 in
Length Less Shaft: 25 1/4 in
Shaft Dia.: 2 7/8 in
