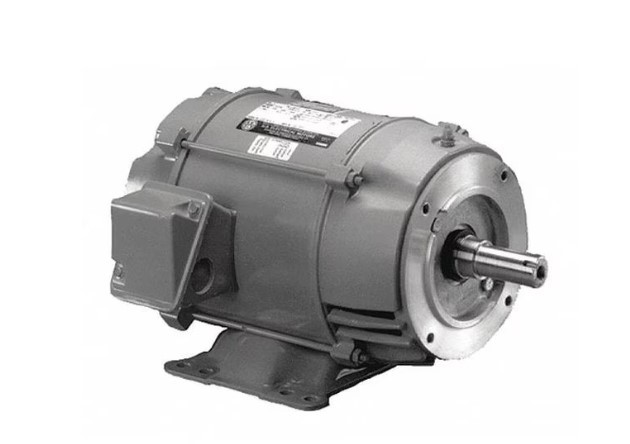

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 3 hp HP, Nameplate RPM 1,725, Frame 56HZ, Voltage 208V, 230V, 460V, 60 Hz Hz, Three Phase, Full Load Amps 9.7-9.4/4.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, CCW Motor Shaft Rotation, Nominal Efficiency 86.9 Percent, CE, CSA Certified, UL Listed
Dimensions
Shaft Dia.: 7/8 in
Shaft Length: 2 1/4 in
Overall Length: 13 1/2 in
Length Less Shaft: 11 1/4 in
