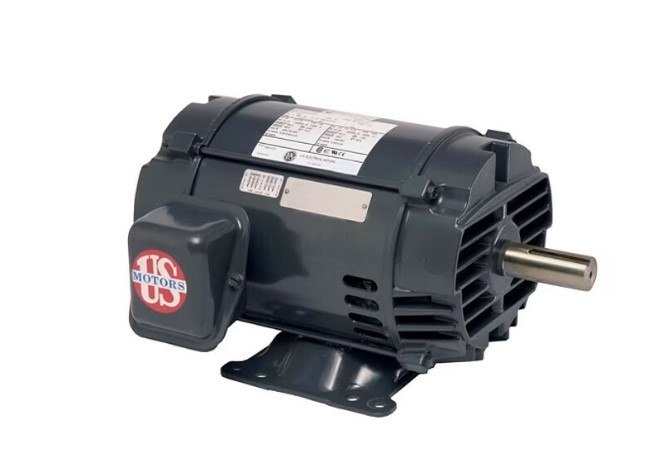

General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 200V AC, Full Load Amps 6.4 A, 145T Frame, Usable @ 208V No, Usable @ 200V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Dimensions
Shaft Dia.: 7/8 in
Manufacturers Warranty Length: 2 yr
Shaft Length: 2 1/4 in
