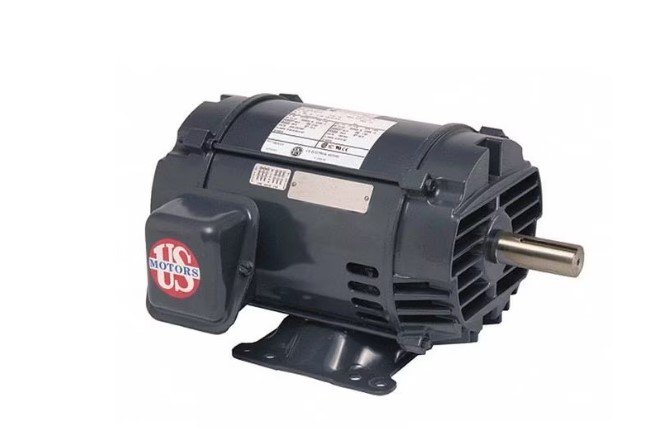

General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.2-3.0/1.5 A, 56H Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Air-Over, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Dimensions
Shaft Length: 1 7/8 in
Shaft Dia.: 5/8 in
Overall Length: 12 3/8 in
Manufacturers Warranty Length: 2 yr
Length Less Shaft: 10 1/2 in
