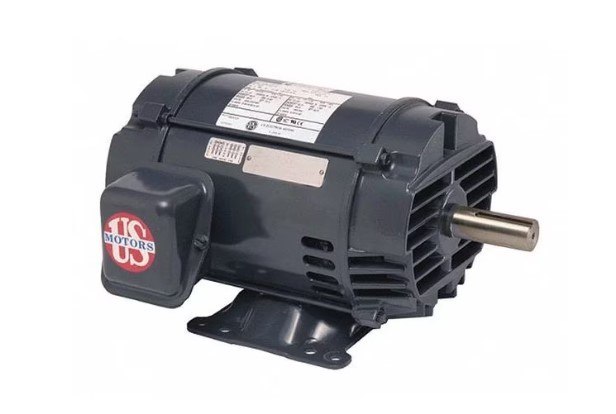

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 125 hp HP, Nameplate RPM 1,780, Frame 405T, Voltage 460V, 60 Hz Hz, Three Phase, Full Load Amps 140.0 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, Nominal Efficiency 95.4 Percent, CSA Certified, ENERGY cURus
Dimensions
Length Less Shaft: 26 3/4 in
Shaft Dia.: 2 7/8 in
Shaft Length: 7 1/4 in
Overall Length: 34 in
