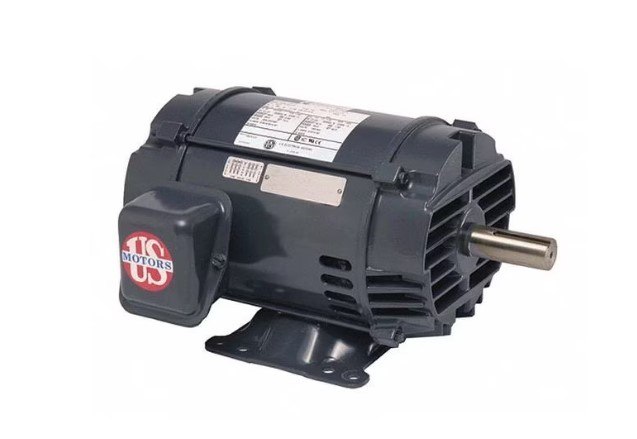

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 125 hp HP, Nameplate RPM 3,565, Frame 404TS, Voltage 460V, 60 Hz Hz, Three Phase, Full Load Amps 137.0 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, Nominal Efficiency 94.1 Percent, CSA Certified, ENERGY cURus
Dimensions
Overall Length: 31 in
Shaft Length: 4 1/4 in
Shaft Dia.: 2 1/8 in
Length Less Shaft: 26 3/4 in
