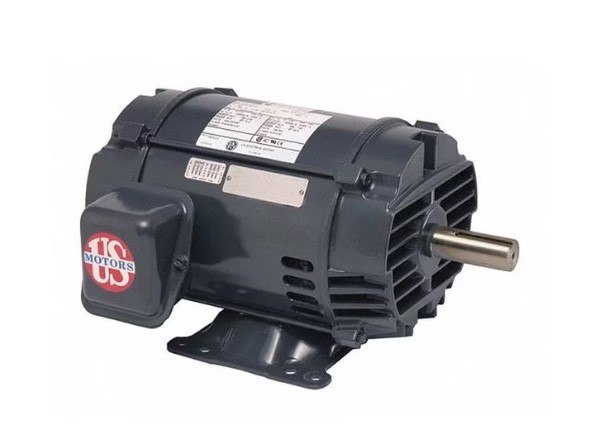

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 125 hp HP, Nameplate RPM 1,780/1,475, Frame 405T, Voltage 380V, 460V, 60/50 Hz Hz, Three Phase, Full Load Amps 140.0 A, Rigid Base Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, CSA Certified, ENERGY cURus
Dimensions
Length Less Shaft: 26 3/4 in
Overall Length: 34 in
Shaft Length: 7 1/4 in
Shaft Dia.: 2 7/8 in
