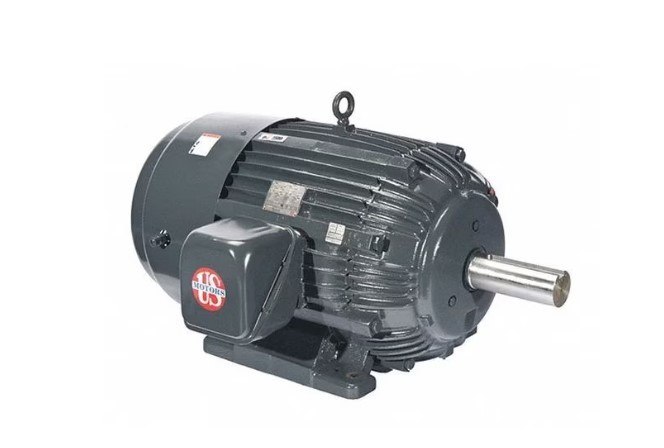

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 100 hp HP, Nameplate RPM 3,554, Frame 365TS, Voltage 230V, 460V, 60 Hz Hz, Three Phase, Full Load Amps 221.0/110.0 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, Nominal Efficiency 94.1 Percent, CSA Certified, ENERGY cURus
Dimensions
Length Less Shaft: 24 3/4 in
Shaft Dia.: 1 7/8 in
Overall Length: 28 1/2 in
Shaft Length: 3 3/4 in
