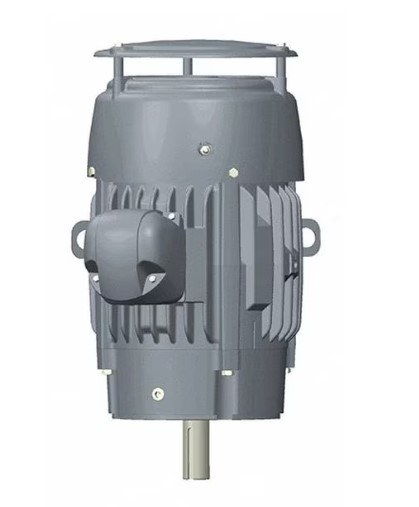

Motor, 3-Phase, Open Dripproof Motor Enclosure Design, 100 hp HP, Nameplate RPM 1,190/990, Frame 444T, Voltage 190V, 230V, 380V, 460V, 60/50 Hz Hz, Three Phase, Full Load Amps 234.0/117.0 A, Rigid Base Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, CSA Certified, ENERGY cURus
Dimensions
Length Less Shaft: 31 5/16 in
Shaft Length: 8 1/2 in
Shaft Dia.: 3 3/8 in
Overall Length: 39 13/16 in
