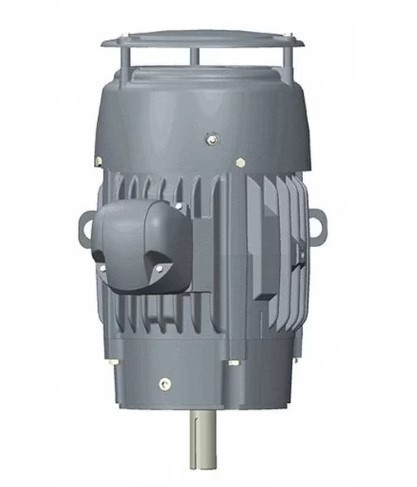

Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 60 hp HP, Nameplate RPM 1,785, Frame 364TSC, Voltage 460V, 60/50 Hz Hz, Three Phase, Full Load Amps 69.0 A, Horizontal Footless Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Steel, Max. Ambient Temp. 104 Degrees F, Nominal Efficiency 95 Percent, CSA Certified, ENERGY cURus
Dimensions
Shaft Length: 3 1/2 in
Length Less Shaft: 27 7/16 in
Shaft Dia.: 1 7/8 in
Overall Length: 30 15/16 in
