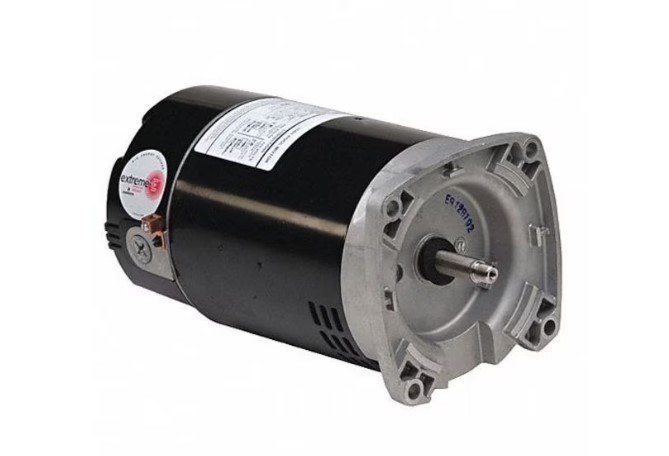

Motor, Bolt Circle Dia. 7 1/8 in, Duty Cycle Continuous, Frame 56Y, Hz 60, Full Load Amps 10.6-10.0, HP 2.6 hp, Ins. Class B, Length Less Shaft 13 3/4 in, Max. Ambient Temp. 50 Degrees C, Motor Bearings Ball, Motor Design Permanent Split Capacitor-Start, Motor Efficiency Group Premium Efficient, Motor Enclosure Design Open Dripproof
Dimensions
Shaft Length: 1/2 in
Shaft Dia.: 5/8 in
Length Less Shaft: 13 3/4 in
Overall Length: 14 7/16 in
Bolt Circle Dia.: 7 1/8 in
