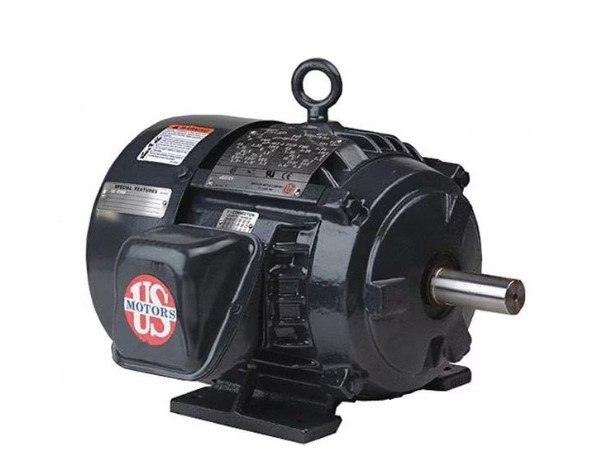

Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 30 hp HP, Nameplate RPM 1,190, Frame 365U, Voltage 460V, 60 Hz Hz, Three Phase, Full Load Amps 36.0 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Cast Iron, Max. Ambient Temp. 104 Degrees F, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, CSA Certified, ENERGY cURus
Dimensions
Shaft Length: 6 3/8 in
Shaft Dia.: 2 1/8 in
Length Less Shaft: 26 7/16 in
Overall Length: 32 13/16 in
