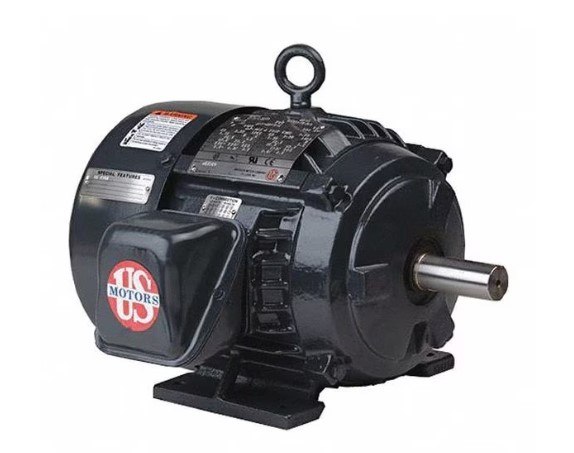

Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 15 hp HP, Nameplate RPM 1,780, Frame 284U, Voltage 460V, 60 Hz Hz, Three Phase, Full Load Amps 17.6 A, Horizontal Footed Motor Mounting Type, Ins. Class F, Motor Service Factor 1.15, Motor Frame Material Cast Iron, Max. Ambient Temp. 104 Degrees F, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, CSA Certified, ENERGY cURus
Dimensions
Shaft Length: 4 7/8 in
Shaft Dia.: 1 5/8 in
Overall Length: 27 3/4 in
Length Less Shaft: 22 7/8 in
