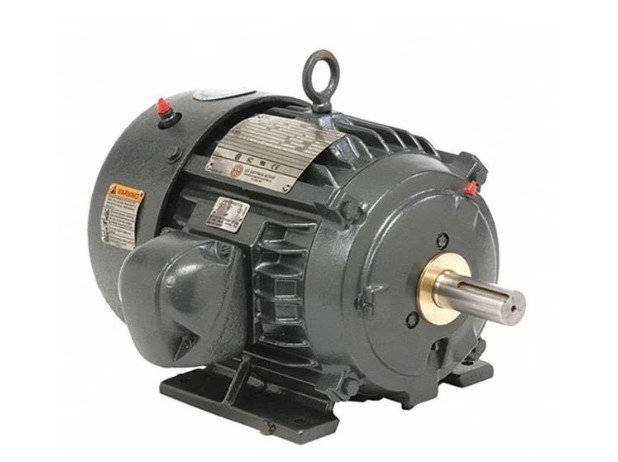

Motor, Three Phase, Motor Design 3-Phase, 60 hp HP, Nameplate RPM 3,565, No. of Speeds 1, Voltage 460V, Full Load Amps 68.0 A, 364TS Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Horizontal Footed, Motor Mounting Position Horizontal, Motor Shaft Design Keyed, Removable Base Regreasable Bearings
Dimensions
Length Less Shaft: 27 1/8 in
Shaft Dia.: 1 7/8 in
Manufacturers Warranty Length: 5 yr
Overall Length: 30 7/8 in
Shaft Length: 3 3/4 in
