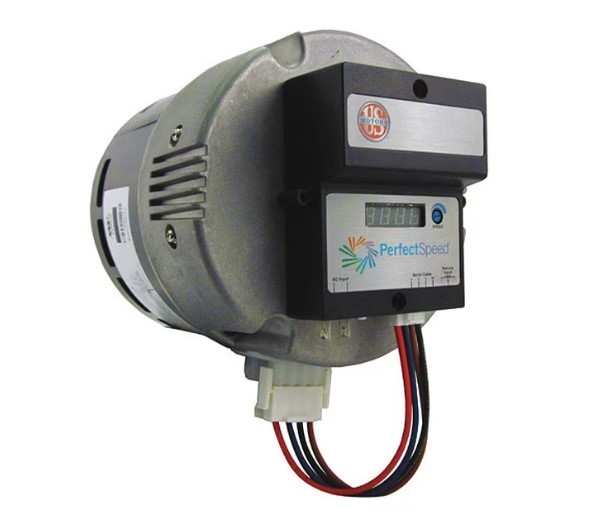

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/2, 1/3 HP, Nameplate RPM 1,250, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.2/4.2-3.8, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60/50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Horizontal, Vertical
Dimensions
Length Less Shaft: 5 3/4 in
Shaft Length: 4 1/2 in
Shaft Dia.: 1/2 in
Overall Length: 10 1/4 in
Body Dia.: 5 7/8 in
Cord Length: 36 in
Stack Size: 1 3/8 in
