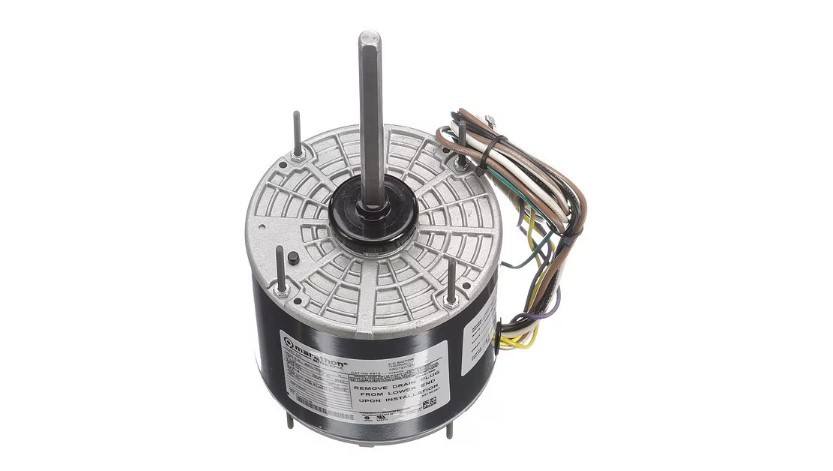

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, 2.00 Full Load Amps, 48Y Frame, 60 Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 5 in
Dimensions
Body Dia.: 5 5/8 in
Bolt Circle Dia.: 5 1/8 in
Overall Length: 10 1/16 in
Shaft Dia.: 1/2 in
Shaft Length: 5 in
Lead Length: 30 in
Length Less Shaft: 5 9/16 in
