Manitowoc CNF0201A-161L

OEM Numbers

CNF0201A-161L, RNS-12A

Spec Sheet (PDF)

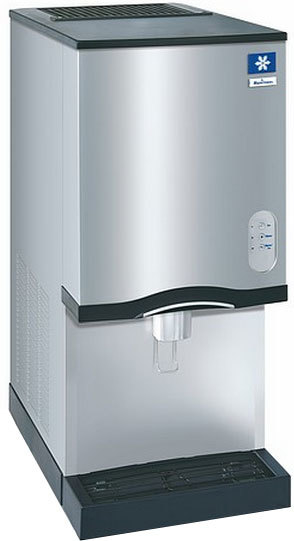

Manitowoc CNF0201A-161L (replaced: RNS-12A) Ice /Water Dispenser

*Ice Activation By Lever Arm: Countertop Nugget

• Up to 315 lbs.daily ice production
• Bin capacity is 10 lbs.
• Only 16.25" wide by 24.00" deep by 35.00" tall without legs­ legs sold separately
• Dimensions of nugget ice are approximately 3/10" x 3/10" x 1/2"
• Three dispense settings are standard: ice only, water only, or ice and water
• One-handed ice dispense. Simply place cup under chute and activate
• Ice activation by lever arm
• Dispense opening from grate to chute maximizes clearance for tall containers
• Cool air intake on left side and discharge out top minimizes customer contact with warm air discharge from refrigeration system
• Larger drain pan minimizes ice spillage
• Blue LED light provides dispense visibility for rooms with limited ambient light
• Water and drain connections in back or bottom of unit for flush mounting
• Operational controls out of sight, but easily accessible
• Manitowoc's patented cleaning technology manages the cleaning process from start to finish

• Warranty
2-year parts and labor coverage on all components.
Additional 3-year (5-year total) parts coverage on ice machine compressor

115/60/1 Ice machines are factory pre-wired
with a 6' power cord and NEMA 5-15P-plug configuration.
Total ampacity: Air-cooled: 10.3 amps.
Maximum fuse size: Air-cooled: 15 amps.

Manitowoc Arctic Pure Water Filter
*BETTER TASTING DRINKS
*60% LESS MACHINE BREAK DOWNS
*LESS FREQUENT CLEANING REQUIREMENTS

Manitowoc Arctic Pure™ systems incorporate state of the art multi-composite carbon block water filtration technology. Water supplies typically contain chlorine, minerals, and organics that can cause scale build up, off tastes, odors or colors.

Features of the Manitowoc Arctic Pure™ water filtration system include:

• Built-in scale inhibitor
• Superior dirt holding capacity and fine sediment reduction
• Sanitary, quick-change housing
• Built-in valve-in head design allows cartridge change out
  'on the fly'- no need to turn the water off to the machine
• NSF certified
• 3-year parts and labor warranty

Filter not included
