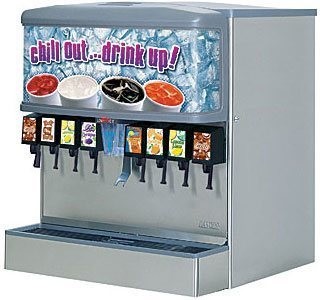

LANCER IBD 4500 30"
PRODUCT FEATURES
- Industry standard platforms in 30" width,
eight or 10 valve, lever or push button
dispensing versatility - Illuminated interchangeable front graphics,
standard fluorescent 15 watt light bulb - Visual low-ice indicator lights up to alert the
need for ice in the dispenser bin - High-capacity ice storage bin for extended
dispense during busy day parts - High-capacity drip tray to handle customer
ice and beverage over-fill helps avoid safety
hazards and drink station clean-up from spills - Unique hex-drive ice agitation and dispense
drive system for trouble-free operation and
long service life - Multiple valve configurations available for self-serve
and portion control operation to control beverage costs - Heavy duty stainless steel construction, exterior and interior
- Fully insulated storage bin and drip tray controls
condensation and helps avoid moisture related
safety hazards - Plumbing access front and rear for installation flexibility
- Hard plumbed syrup and water lines
PRODUCT SPECIFICATIONS
DIMENSIONS
Width: 30"
Depth: 30.5"
Height: 35.375"
SPACE REQUIRED
Width: 30"
Deep: 30.5"
ELECTRICAL
115VAC/60Hz, 3AMPs
WEIGHT
With ice: 525 lbs
Shipping: 305 lbs
ICE (Cube)
Capacity: 250 lbs
Dispensable: 175 lbs
FITTINGS
Soda inlets: 3/8" male barb
Syrup inlets: 3/8" male barb
VALVES
Flomatic
UFI
FLEX MANIFOLD CONFIGURATION
8-Valve: 3-1-1-3
KEY LOCK SWITCH
Spec Sheet (PDF)
