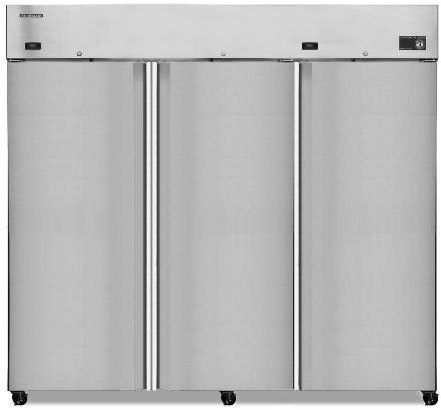

Hoshizaki R3A-FS

R3A-FS Product Description

OEM Numbers

R3A-FS, CR3B-FS, CR3S-FS

Spec Sheet (PDF)

• Sturdy 8 gauge stainless steel hinge plate with welded hinge pin
• Extruded aluminum flush mount door handle
• Field reversible doors (with optional kit)
• Evaporator coils are epoxy electrocoated (E-Coat) to help fight corrosion
• Energy efficient automatic hot gas condensate evaporator
• Stainless steel shelf supports
• (3) epoxy coated wire shelves per section are standard
• 8 ft. cord and plug
• Stainless steel interior with stainless steel exterior front and sides
• Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
• Unique “ducted" air distribution system
• Solid state digital controller with temperature alarms and LED display (Fahrenheit or Celsius)
• Cabinet and doors are insulated with 2-3/8" of CFC free, foamed in place polyurethane
• Stainless steel exterior and interior door come standard with locks
• Exclusive stepped door design to protect recessed door gasket
• Spring assisted self closing doors with stay open feature

Product Specs

• Amps: 12
• Cubic Feet: 73.3 cu ft.
• Dimensions: 83 x 33.75 x 79.75 (W" x D" x H")
• Door(s): 3
• Exterior: Stainless steel front and sides
• Interior: Stainless steel
• Shelves: 9
• Volts: 115
• Warranty: 3 years parts and labor, 5 years on compressor
• Weight: 895 lbs.
