duke 153034sed

duke

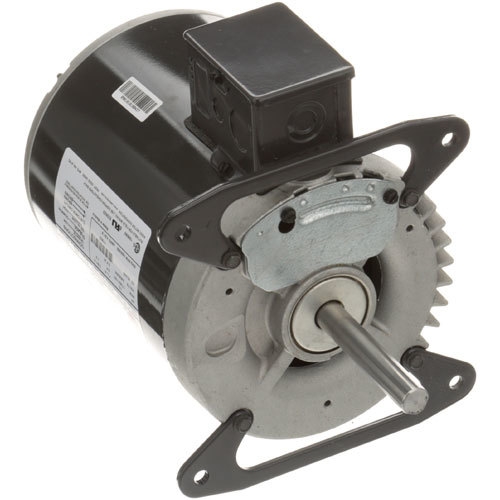

Duke 153034SED

MOTOR 200-240V, 1/2-.14HP, 1P

Price: $340.68
Fast processing and shipping
serving the USA since 2005

153034SED Product Description

OEM Numbers
153034SED, 153036, 153036SED, 155828, DUK155828
[ 200-240V, ] [ 1/2-1/4 HP,][ 50/60 HZ ] [1Ph ] 2 SPEED.;[1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [CW/REVERSIBLE;ROTATION ] [3-1/2" X 5/8" SHAFT W/ 2 FLATS ];IF USING AN EMERSON MOTOR ON A GARLAND OVEN, THE TWO;GRAY WIRES MAY NOT BE NEEDED. CAP THEM INDIVIDUALLY WITH;WIRE NUTS. GROUND WIRE TO MOTOR CASE MAY NEED TO BE;ADDED.;FOR GARLAND OEM MOTOR 168702 USE #68-1259;BLOWER WHEEL 9-7/8" DIA X 2-1/2" DEEP X 5/8" BORE # 26-1328;OR GEN USE BLOWER WHEEL 10" DIA. X 2" DEEP X 5/8" BORE, ;# 26-4052;DUKE OVEN SERIES: E

Product Specs

  • Dimensions: 8" x 16" x 10" (W" x D" x H")
  • Weight: 25.5 lbs.
