CMA CMA-180-VL

CMA-180-VL Product Description

OEM Numbers

CMA-180-VL, CMA-180-VL

Spec Sheet (PDF)

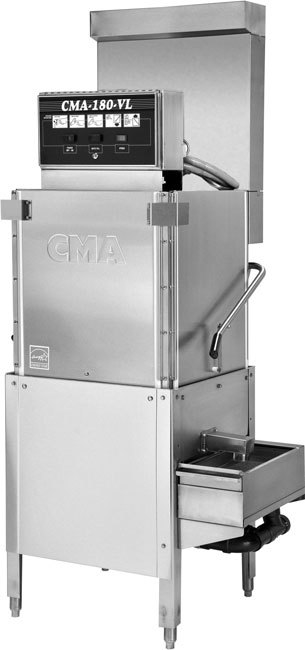

• High-Temperature 3-Door, Single-Rack Dishwasher
• Final rinse valve receives cold water (45-70°F) processed thru "heat recovery system", providing nearly cost-free heating capabilities for water supplied to the booster heater, which reduces the recovery time for the booster heater
• Heat recovery system captures water vapor from the wash & rinse cycle and condenses it, in order to heat the incoming cold water and evacuate the steam from the wash chamber
• Safe-T-Temp feature assures 180°F sanitizing rinse cycle
• Minimum 90-second cycles. (60-sec. wash/rinse & 30-second steam evacuation)
• 40 racks per hour (based on a 90-second cycle)
• Maximum clearance for dishes is 17-1/2"
• All Stainless Steel construction
• Heat Recovery System captures water vapor from the wash cycle and condenses it, in order to heat the incoming cold water

Energy Star Certified! Energy efficient choices can save you money on your energy bill, without sacrificing features.

Product Specs

• Clean Type: High Temperature
• Dimensions: 25 1/2 x 25 x 85 5/16 (W" x D" x H")
• Exterior: Stainless steel
• Flow Rate: 52 GPM
• Phase: Single Phase/Three Phase
• Racks per hour: 40
• Type: Ventless
• Volts: 208/240
• Warranty: 1 year parts and labor
• Weight: 400 lbs.
