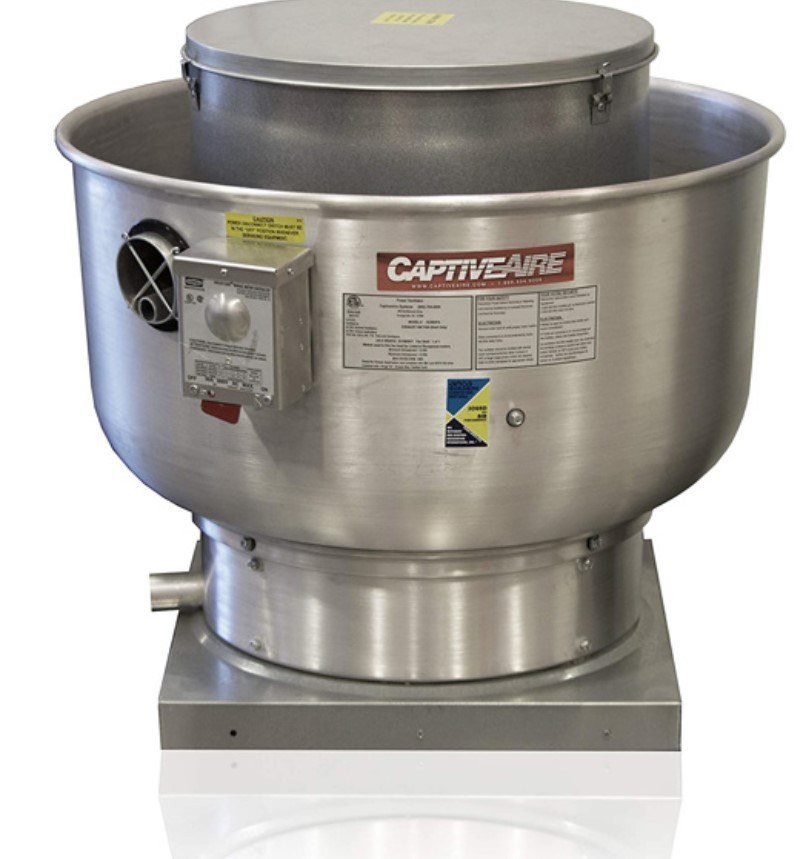

Captive-Aire DU12HFA

Centrifugal Upblast Direct Drive DU12HFA Roof Mounted General Ventilation (UL 705) 0.25 HP 600 CFM @0.25 in. w.c.

DU12HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, disconnect switch and 10-1/2" wheel. Exhaust Fan handles 600 CFM @ -0.250" wc ESP. Fan runs at 1290 RPM. Exhaust Motor: 0.250 HP, 1 Phs, 115 V, 60Hz, 2.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).

Includes MSC Controller for manual or 0-10V speed control.

SPECIFICATIONS:

• HP: 0.25
• Voltage: 115
• Phase: 1
• Motor Type: ECM
• FLA: 2.9
• Fan/Motor RPM Range: 350-1800
• Speed Controller Type: CaptiveAire MSC (Motor Speed Controller)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
• CFM Range: 100-1000
• Length: 27 in / 68.58 cm
• Width: 25 in / 63.50 cm
• Height: 20 in / 50.80 cm
• Weight: 38 lbs / 17237 g
