captive-aire dtp1/54

captive-aire

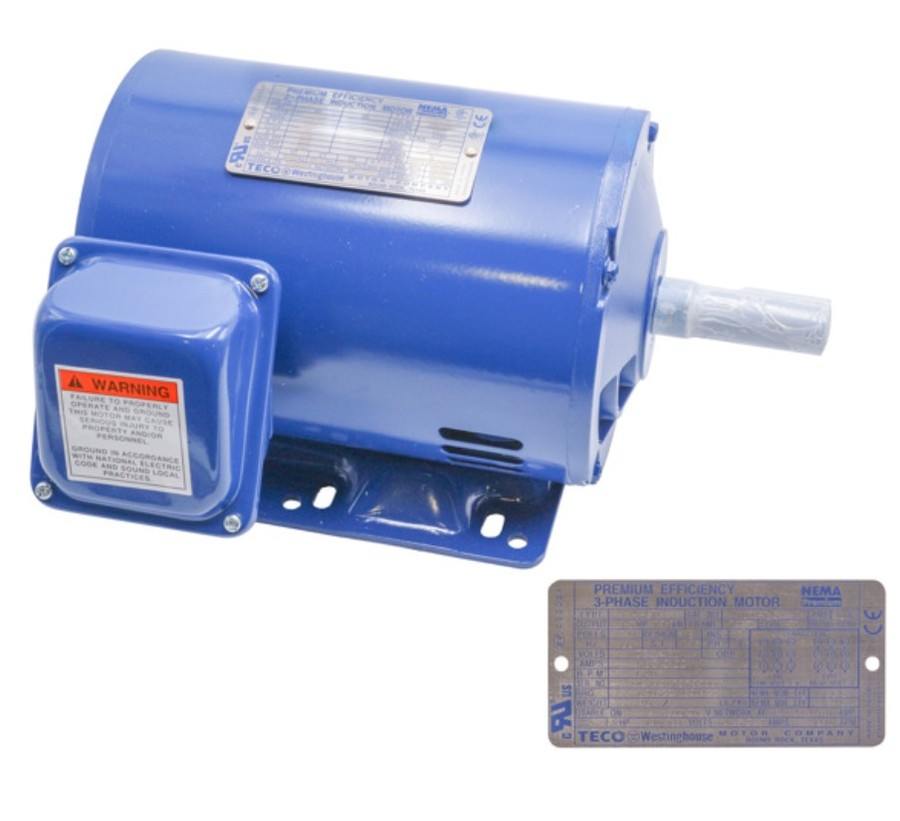

Captive-Aire DTP1/54

1.5 HP 3 phase Continuous duty motor

Price: $766.58
We offer expedited shipping. Please contact us for rates.
Fast processing and shipping
serving the USA since 2005

DTP1/54 Product Description

rated for 230/460 VAC.

SPECIFICATIONS:

  • Material: Metal
  • Color: Blue
  • HP: 1.5
  • Voltage: 230/460
  • Phase: 3
  • Enclosure type (ODP, TEFC, TENV, TEAO): ODP
  • Shaft length: 2.25"
  • Center to base: 3.5"
  • Time Rating: Continuous
  • Insulation Class: F
  • Insluation Max Temp: 311 F
  • Efficiency: Premium
  • Poles: 4
  • Nameplate RPM: 1750
  • NEMA Frame Size: 145
  • Shaft Diameter: Keyway X 7/8"

Product Specs

  • Weight: Not Available lbs.
