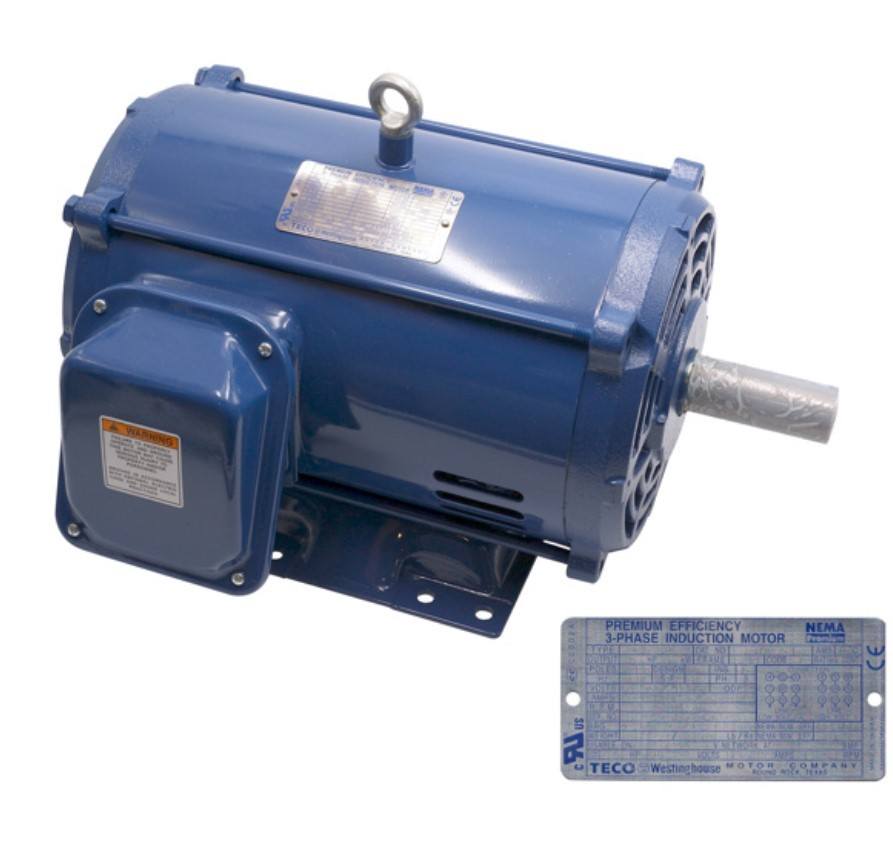

CAPTIVE-AIRE DTP0054 GENUINE OEM REPLACEMENT PART
MOTOR - 5.00
HP, Three Phase, 208-230/460V, ODP, 1750 RPM
Rigid Base, 184T Frame,
15.04-13.60/6.80 FLA, Keyway X 1-1/8" Shaft Diameter. Class F
Insulation.
INVERTER DUTY
Specifications:
- Material: Metal
- Color: Blue
- HP: 5
- Nameplate RPM: 1750
- Voltage: 230/460
- Phase: 3
- Enclosure type: ODP
- Shaft length: 2.75"
- Center to base: 4.5"
- Inverter rated: Inverter
- Insulation Class: F
- Insluation Max Temp: 311 F
- 100% Efficiency: 89.5
- 75% Efficiency: 90.0
- 50% Efficiency: 89
- Poles: 4
- NEMA Frame Size: 184T
- Shaft Diameter: Keyway X 1-1/8"
