captive-aire dtp0024

captive-aire

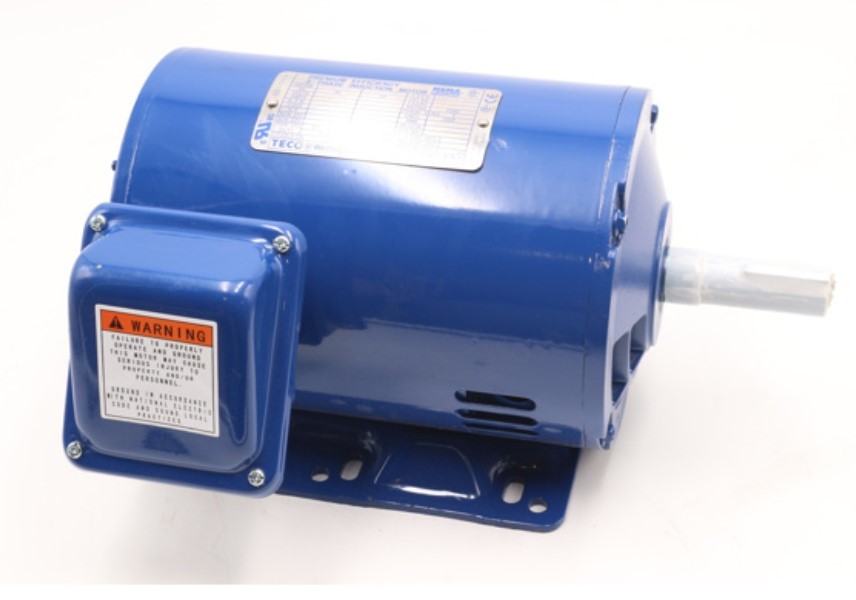

Captive-Aire DTP0024

2 HP 3 phase Continuous Duty Motor

Price: $812.73
We offer expedited shipping. Please contact us for rates.
Fast processing and shipping
serving the USA since 2005

DTP0024 Product Description

Rated for 230/460 VAC.

SPECIFICATIONS:

  • Material: Metal
  • Color: Blue
  • HP: 2
  • Nameplate RPM: 1740
  • Phase: 3
  • Shaft length: 2.25"
  • Center to base: 3.5"
  • Insulation Class: F
  • Insulation Max Temp: 311 F
  • Efficiency: Premium
  • Poles: 4
  • Voltage: 230/460
  • NEMA Frame Size: 145T
  • Shaft Diameter: Keyway X 7/8"
  • 100% Efficiency: 86.5
  • 75% Efficiency: 86.0
  • 50% Efficiency: 84.0

Product Specs

  • Weight: Not Available lbs.
