Captive-Aire CAS-DU85HFA-1HP

Spec Sheet (PDF)

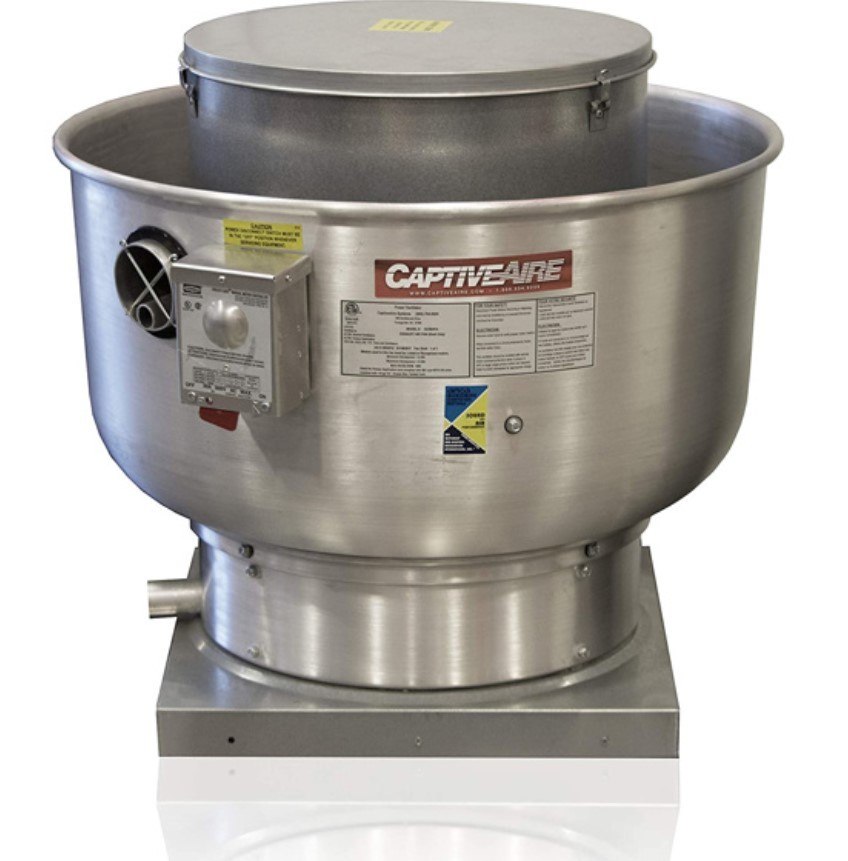

DU85HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, disconnect switch and 15-3/4" wheel. Exhaust Fan handles 2500 CFM @ -0.500" wc ESP. Fan runs at 1408 RPM. Exhaust Motor: 1.000 HP, 1 Phs, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)

Includes MSC Controller for manual or 0-10V speed control.

Not suitable for grease applications. For restaurant duty, use CAS-DU85HFA-1HP-Grease

SPECIFICATIONS:

• HP: 1
• Voltage: 115
• Phase: 1
• Motor Type: ECM
• FLA: 11.6
• Fan/Motor RPM Range: 300-1800
• Speed Controller Type: CaptiveAire MSC (Motor Speed Controller)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
• CFM Range: 800-3200
