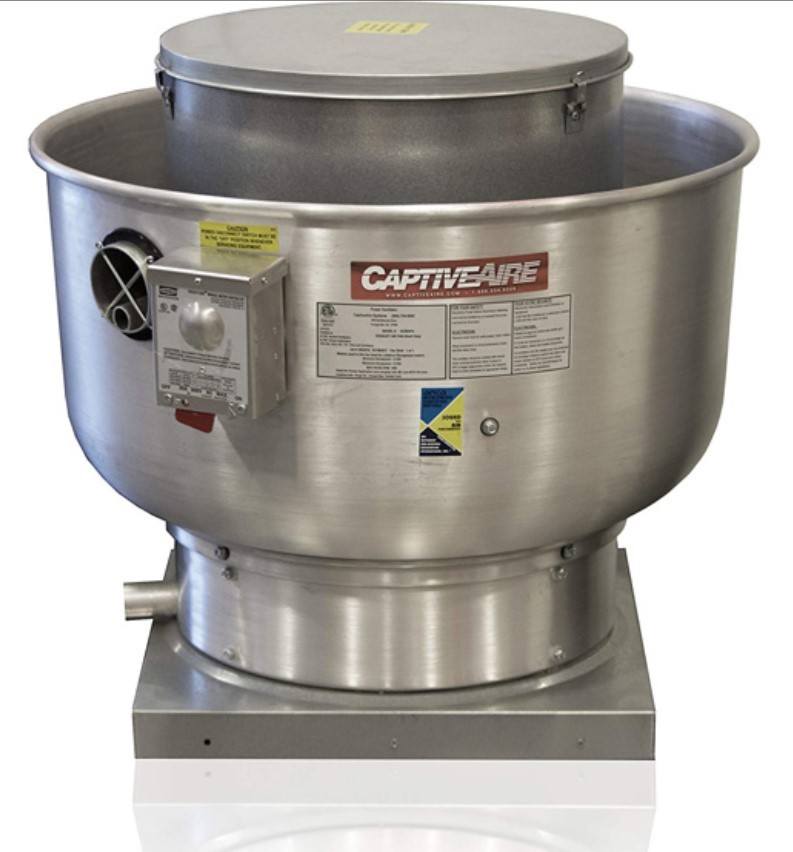

Captive-Aire CAS-DU360HFA

Spec Sheet (PDF)

DU360HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with disconnect switch and 36" wheel. Exhaust Fan handles 10000 CFM @ -1.500" wc ESP, Fan runs at 612 RPM. Exhaust Motor: 10.000 HP, 3 Phs, 208 V, 60Hz, 28.4 FLA, ODP, Premium (E-Plus3) Eff.

A fan mounted VFD is included for speed control. Fan mounted VFD's are not
suitable for areas with ASHRAE design conditions below -10 F or above 100 F.

Not suitable for grease applications. For restaurant duty, use CAS-DU360HFA-Grease

SPECIFICATIONS:

• HP: 10
• Voltage: 208
• Phase: 3
• Motor Type: ODP
• FLA: 28.4
• Fan/Motor RPM Range: 300-647
• Speed Controller Type: VFD (factory mounted in the fan)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
• CFM Range: 4500-22300
