Captive-Aire CAS-DU180HFA

Spec Sheet (PDF)

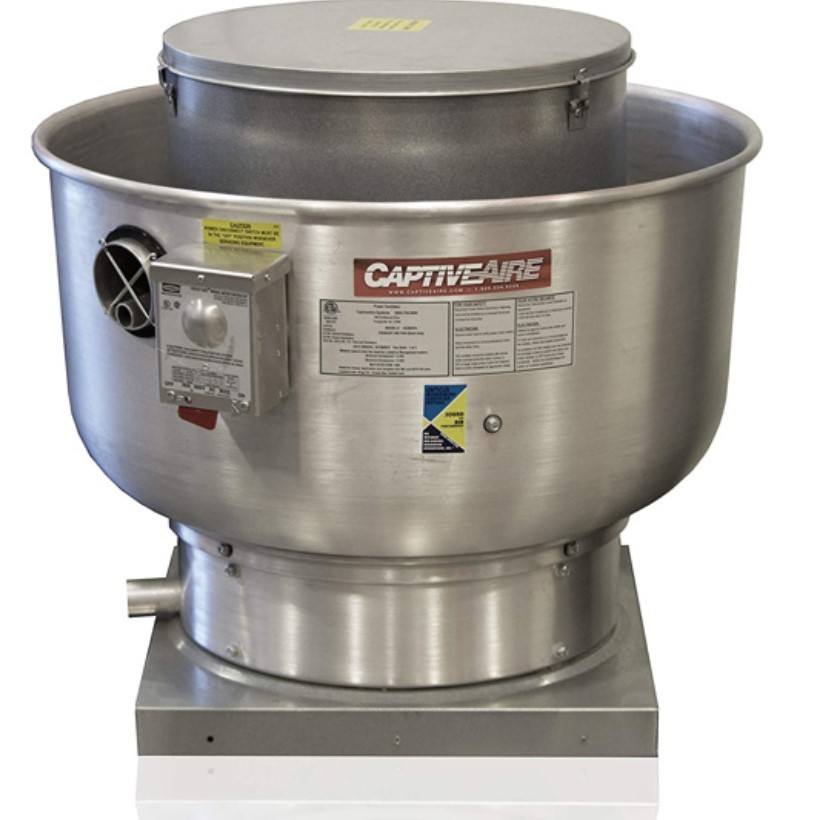

DU180HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with disconnect switch and 18-3/4" wheel. Exhaust Fan handles 3000 CFM @ -1.000" wc ESP. Fan runs at 1183 RPM. Exhaust Motor: 1.500 HP, 3 Phs, 208 V, 60Hz, 6.6 FLA, ODP, Premium (E-Plus3) Eff.

A fan mounted VFD is included for speed control. Fan mounted VFD's are not suitable for areas with ASHRAE design conditions below -10 F or above 100 F.

Not suitable for grease applications. For restaurant duty, use CAS-DU180HFA-Grease

SPECIFICATIONS:

• HP: 1.5
• Voltage: 208
• Phase: 3
• Motor Type: ODP
• FLA: 6.6
• Fan/Motor RPM Range: 600-1407
• Speed Controller Type: VFD (factory mounted in the fan)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
• CFM Range: 1000-5500
