Captive-Aire CAS-DR300HFA

Spec Sheet (PDF)

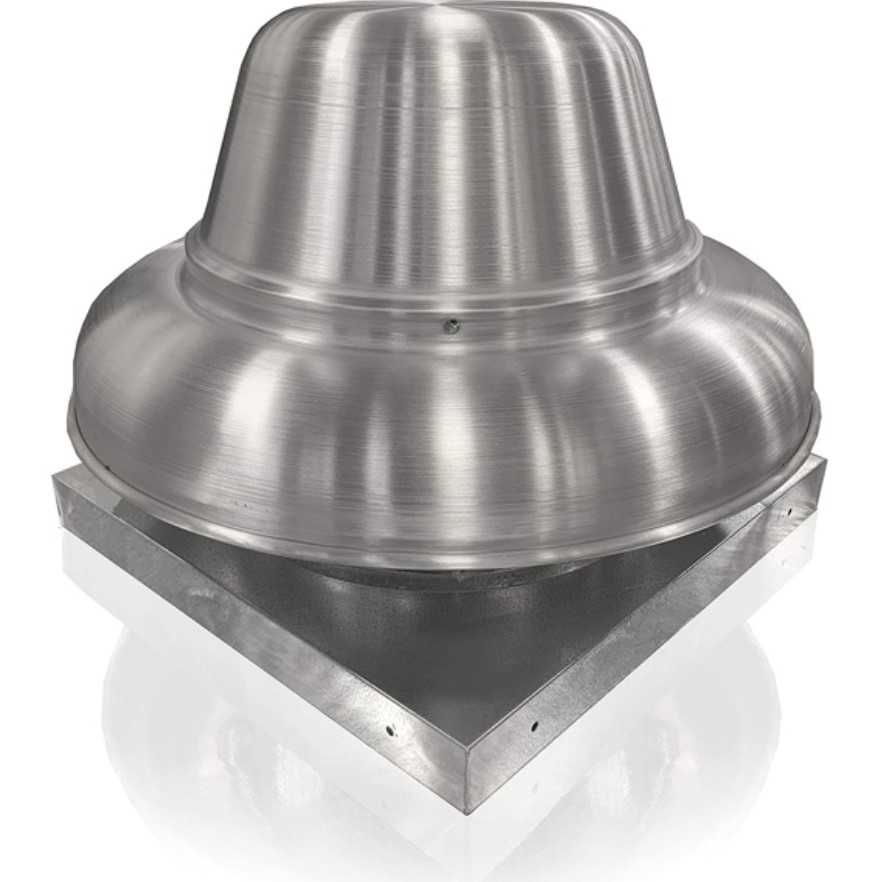

DR300HFA High Speed Direct Drive Centrifugal Downblast Exhaust Fan with birdscreen, disconnect switch and 30" wheel. Exhaust Fan handles 6000 CFM @ -1.000" wc ESP. Fan runs at 587 RPM. Exhaust Motor: 3.000 HP, 3 Phs, 208 V, 60Hz, 10.1 FLA, TEFC, Premium (E-Plus3) Eff.

A fan mounted VFD is included for speed control. Fan mounted VFD's are not
suitable for areas with ASHRAE design conditions below -10 F or above 100 F.

SPECIFICATIONS:

• HP: 5
• Voltage: 208
• Phase: 3
• Motor Type: ODP
• FLA: 10.1
• Fan/Motor RPM Range: 400-746
• Speed Controller Type: VFD (factory mounted in the fan)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
