Captive-Aire CAS-DR180HFA

Spec Sheet (PDF)

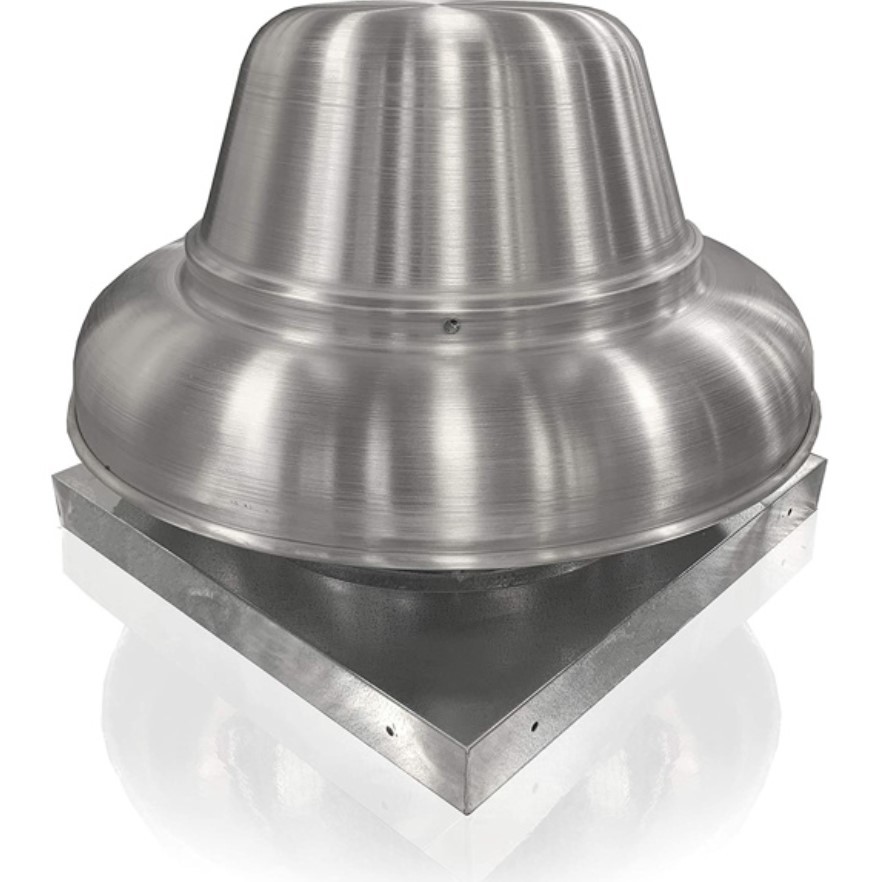

DR180HFA High Speed Direct Drive Centrifugal Downblast Exhaust Fan with birdscreen, disconnect switch and 18-3/4" wheel. Exhaust Fan handles 2500 CFM @ -1.000" wc ESP. Fan runs at 1058 RPM. Exhaust Motor: 2.000 HP, 3 Phs, 208 V, 60Hz, 8.3 FLA, ODP, Premium (E-Plus3) Eff.

A fan mounted VFD is included for speed control. Fan mounted VFD's are not
suitable for areas with ASHRAE design conditions below -10 F or above 100 F.

SPECIFICATIONS:

• HP: 2
• Voltage: 208
• Phase: 3
• Motor Type: ODP
• FLA: 8.3
• Fan/Motor RPM Range: 600-1350
• Speed Controller Type: VFD (factory mounted in the fan)
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
