Captive-Aire CAS-DR10HFA

Spec Sheet (PDF)

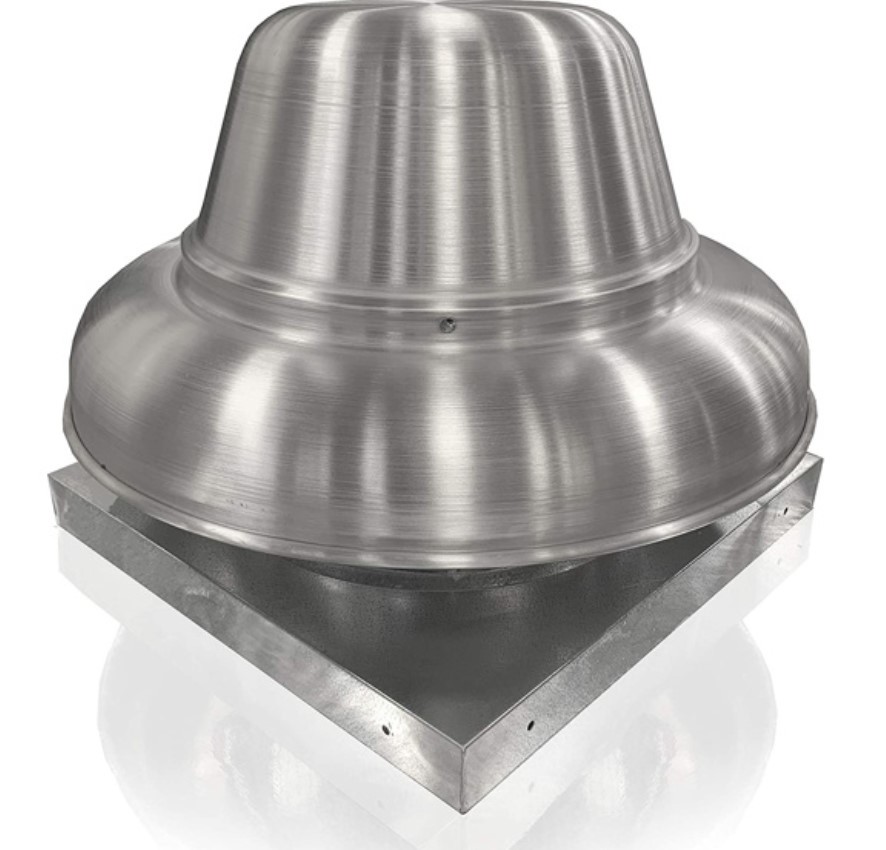

DR10HFA High Speed Direct Drive Centrifugal Downblast Exhaust Fan with speed control, birdscreen, disconnect switch and 9" wheel Exhaust Fan handles 300 CFM @ -0.125" wc ESP. Fan runs at 1132 RPM. Exhaust Motor: 0.166 HP, 1 Phs, 115 V, 60Hz, 1.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).

Includes RTC controller for manual or 0-10V speed control.

SPECIFICATIONS:

• HP: 0.16
• Voltage: 115
• Phase: 1
• Motor Type: ECM
• FLA: 1.9
• Fan/Motor RPM Range: 350-1800
• Speed Controller Type: RTC
• Exhaust Fan UL Listing: UL 705 (General Ventilation)
