captive-aire 5018ot3e56-s48pp

captive-aire

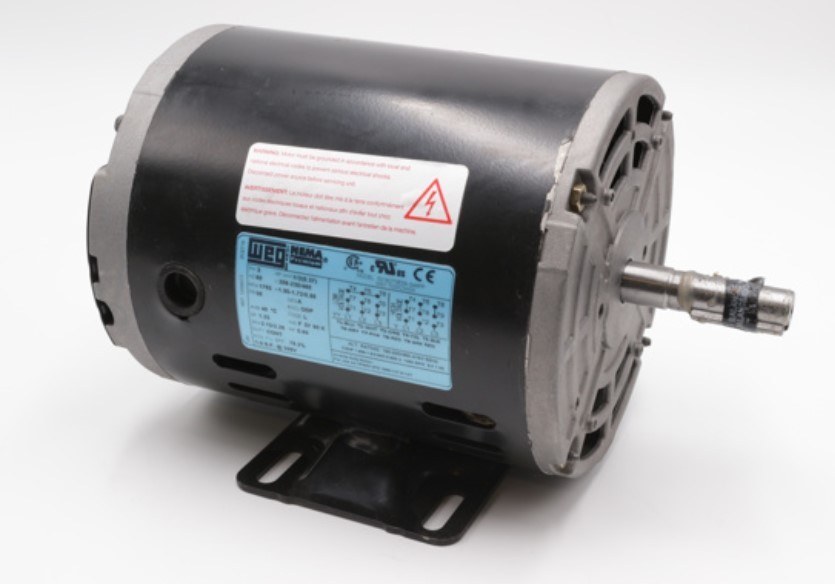

Captive-Aire 5018OT3E56-S48PP

0.5 HP 3 Phase Inverter Duty Motor

Price: $244.96
We offer expedited shipping. Please contact us for rates.
Fast processing and shipping
serving the USA since 2005

5018OT3E56-S48PP Product Description

Rated for 208-230/460 VAC.

SPECIFICATIONS:

  • Material: Metal
  • Color: Black
  • HP: 0.5
  • Nameplate RPM: 1765
  • Voltage: 208-230/460
  • Phase: 3
  • NEMA Frame Size: 56
  • Enclosure type: ODP
  • Shaft length: 1.875"
  • Center to base: 3.5"
  • Inverter rated: Inverter
  • Insulation Class: F
  • Insluation Max Temp: 311 F
  • 100% Efficiency: 78.2
  • 75% Efficiency: 75.5
  • 50% Efficiency: 70.0
  • Efficiency: Premium
  • Poles: 4
  • Shaft Diameter: Keyway X 5/8"

Product Specs

  • Weight: Not Available lbs.
