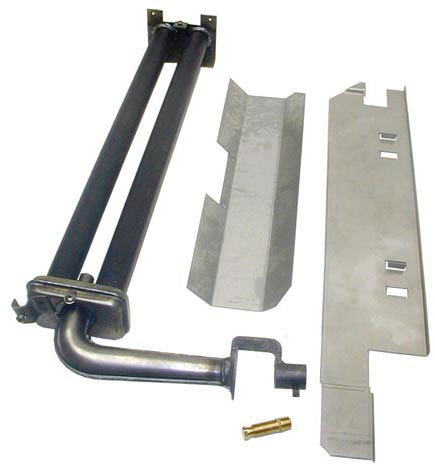

STEEL BURNER, 31-1/2" OVERALL STRAIGHT LENGTH ,
[ BURNER TUBE 1.67" DIA X 27" ( BOX CENTER & MOUNTING
PLATE END )], BURNER TUBES WIDTH ACCROSS 4-3/4" WIDE,
"L" LEG TO BOX = 15-1/4", #56 ORIFICE
INCLUDES WALL DEFLECTOR & BURNER DIVIDER.
4 MACHINE SCREWS 1/4"-20 X 3/4" SS
6 FLAT WASHERS 1/4", 1 LOCK WASHER 1/4",
1 BURNER ORIFICE 1/4" MPT X .594", # 56
1 NIPPLE, BRASS, 3/8" MPT X 1-7/8" W/ HEX
1 AIR SHUTTER 2-1/4" OD X 3/8" FPT, 1 BOLT 5/16"-18 X 3/4"
BLODGETT OVEN 901, 911, 916, 931, 951, 960, 961, 966, 981,
999
