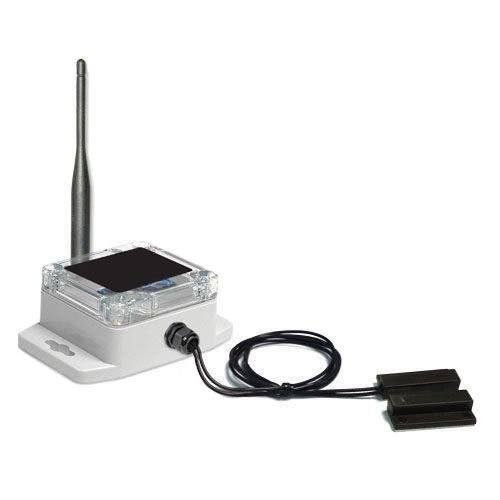

The wireless open/closed sensor will give you the status of doors, windows, etc. Know if a building or specific area is being accessed when it should not be, or if a door or window has been left open. Set your Temp Alert system to notify you via SMS text, email, or both.
Temp Alert Industrial Sensors come in an IP66, NEMA 4X, CE rated, sealed, and weatherproof enclosure.
They are powered by a single, replaceable, Industrial grade 3.6 V battery (included).
Suggested Application
Magnetic Sensor Specifications | |
| Switch Cycles | 50 million |
| Operation Gap | Up to 3/4 inch |
| Wire Leads | 22 gauge / 15 inch length |
| Magnet | Alnico |
| Magnet Case Construction | Weatherproof, high-impact ABS plastic with self-adhesive backing |
| Magnet Temperature Range | -15°F to 160°F (-25°C to 70°C) |
Industrial Specifications | |
| Battery Type | Replaceable, Single AA, 2500mAH, 3.6V Battery |
| Dimension | 3.7 in x 2.32 in x 1.38 in |
| Max Operating Temp | -40° to 85°C (-40° to 185°F) |
| Supply Voltage | 2.0 - 3.6 V |
| Device Range | 300 - 350 ft. non-line-of-sight device range* |
| Battery Life | Up to 5 Year Battery Life.** |
| Optimal Battery Operating Temp | +10°C to +50°C (+50°F to +122°F) |
| Solar Power Option | 3.0 vdc solar panel |
| Enclosure Material | IP66 NEMA 4X, CE rated, sealed, weatherproof enclosure |
900 MHz Specifications | |
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
Sensor Comes with:
Single AA, 2500mAH, 3.6V Battery
Mounting adhesive tape
