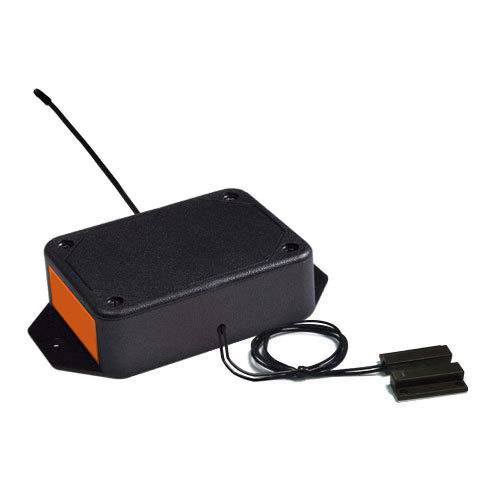

The wireless open/closed sensor will give you the status of doors, windows, etc. Know if a building or specific area is being accessed when it should not be, or if a door or window has been left open. Set your Temp Alert system to notify you via SMS text, email, or both.
The sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase). This sensor is also available with a line power option.
Suggested Application
Magnetic Sensor Specifications | |
| Switch Cycles | 50 million |
| Operation Gap | Up to 3/4 inch |
| Wire Leads | 22 gauge / 15 inch length |
| Magnet | Alnico |
| Magnet Case Construction | Weatherproof, high-impact ABS plastic with self-adhesive backing |
| Magnet Temperature Range | -15°F to 160°F (-25°C to 70°C) |
| | |
AA Specifications | |
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating Temp Using AA Alkaline | -18° to 55°C (0° to 130°F) |
| Max Operating Temp Using AA Lithium | -40° to 85°C (-40° to 185°F) |
| Optimal Battery Operating Temp | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
| | |
900 MHz Specifications | |
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
Sensor Comes with:
(2) AA 1.5 V Batteries
Mounting adhesive tape
