Product Description

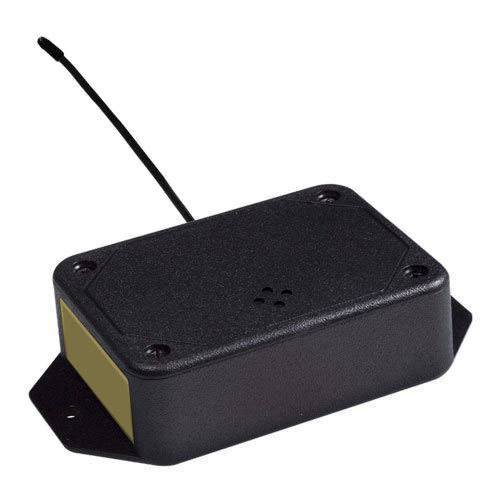

The danger of CO (Carbon Monoxide) poisoning is a growing concern in the world today. The lack of knowledge of CO in a house or building has caused harm and unfortunate fatalities. The Temp Alert wireless system will provide monitoring at a very affordable price with ease to setup. It can notify you via SMS text, email, or both to protect employees, customers, or family members from dangerous levels of carbon monoxide. The wireless sensor allows you also to monitor the level of carbon monoxide (CO) gas in the surrounding air through the data page on our monitoring system.
This commercial sensor is powered by two replaceable 1.5 V AA sized batteries (included with purchase)
Suggested Application
CO Sensor Specifications | |
| Accuracy | ± 2% of reading or 1 ppm, whichever is greater |
| Sensitivity | 5±2 nA/ppm |
| Measuring Range | 0-1000 PPM |
| Maximum Overload | 5000 PPM |
| Measuring Principle | Electrochemical Oxidation of CO |
| Resolution | ± 1 PPM |
| Response Time | (t-90) < 30s typical at 20°C |
| Stabilization Time | < 30 seconds |
| Long Term Drift – Zero | Zero Signal = ± 2 PPM / month |
| Long Term Drift – Span | Output Signal = ± 2% of reading per month |
| Maximum Zero Shift | < 10 ppm equivalent (-20°C to +40°C) |
| Operating Temperature | -7 to 40°C (10 – 35°C recommended) |
| Operating Pressure | ± 0.2 atm (recommended) |
| Operating Humidity | 10 to 95% RH (non-condensing) |
| Estimated Service Life | > 5 years |
AA Specifications | |
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years. ** |
| Max Operating (Alkaline) | -18° to 55°C (0° to 130°F) |
| Max Operating (Lithium) | -40° to 85°C (-40° to 185°F) |
| Opt Operating Temp | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
900 MHz Specifications | |
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
Mounting adhesive tape Included
