This is the perfect solution for remote locations, or where an existing internet connection is not available.
Government institutions and other corporations that have specific internet privacy regulations use this gateway.

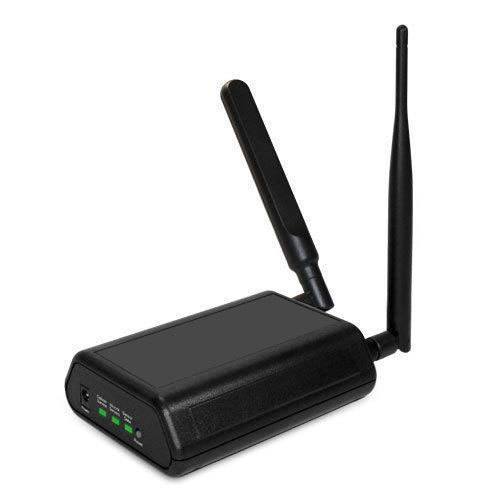

The Cellular Gateway is used to communicate with each wireless sensor. Only one gateway is necessary to operate the system.
Just plug the 110 Volt adapter to a outlet and it is all powered up.
Cellular Gateway Specifications | |
| Cellular Tech | Dual Band CDMA Frequency Range: 800 / 1900 MHz |
| Antenna Type | SMA Gain (dBi): 1.5 |
| Input Power | 5.5 VDC @ 900 mA |
| Cellular Carrier | AT&T, Verizon, or Sprint |
Cellular Gateway Specifications | |
| Dimension | 5.004 x 3.8 x 1.51 in. |
| Storage Temp | -20 to +85 °C (-4 to 185 °F) |
| Enclosure Material | (ABS) |
| LED Lights | Cellular Status LED, Online Status LED, Sensor Network Status LED |
| Operating Temp | -10 to +70 °C (14 to 158 °F) |
| Device Memory | 50,000 sensor messages (Sensor messages will be stored in the event of Internet outage) |
900 MHz Specifications | |
| Operating Freq | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
