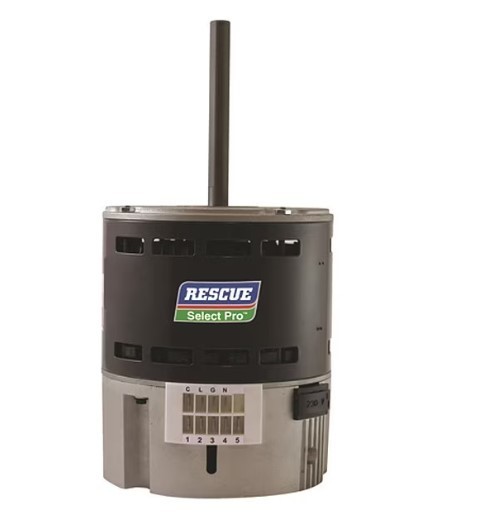

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 12.3/7.7-7.2, 12.4/7.8-7.2, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60/50 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Horizontal
Dimensions
Shaft Length: 5 in
Shaft Dia.: 1/2 in
Body Dia.: 5 5/8 in
Overall Length: 12 in
Cord Length: 36 in
Length Less Shaft: 7 in
Stack Size: 1 7/8 in
