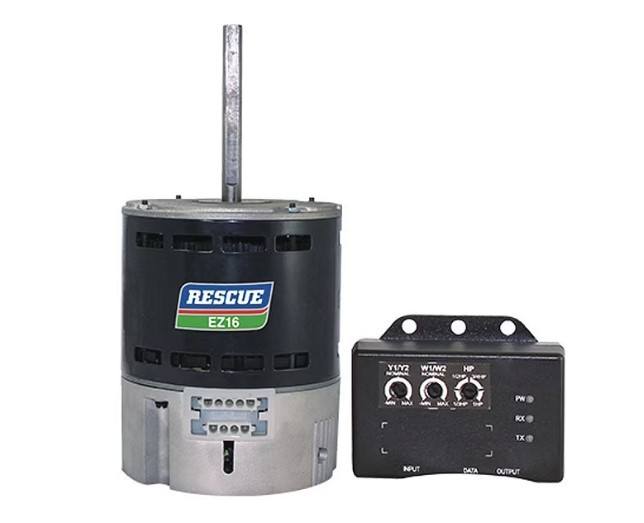

Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 12.1/7.6-7.1, 48Y Frame, OEM Replacement Brand Amana, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band
Dimensions
Shaft Length: 5 in
Length Less Shaft: 7 in
Overall Length: 12 in
Shaft Dia.: 1/2 in
Body Dia.: 5.7 in
